Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, BV,
Model Number: Thermal Lamination Film
Payment & Shipping Terms
Minimum Order Quantity: 1 Tons (Mixed roll widths accepted)
Price: USD2075.00/Ton ~ USD2380.00/Ton
Packaging Details: 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Delivery Time: 15 - 25 working days
Payment Terms: T/T, L/C
Supply Ability: 850 Tons per month
Material: |
PET + EVA |
Type: |
Matt |
Softness: |
Soft |
Thickness: |
From 24micron To 250micron |
Transparent: |
Transparency |
Roll Size: |
600mm*150m, 900mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Processing Technology: |
Multiple Extrusion |
Paper Core: |
1inch (25.4mm), 2.3inch (58mm), 3inch (76mm) |
Usage: |
Printing Media Laminate |
Material: |
PET + EVA |
Type: |
Matt |
Softness: |
Soft |
Thickness: |
From 24micron To 250micron |
Transparent: |
Transparency |
Roll Size: |
600mm*150m, 900mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Processing Technology: |
Multiple Extrusion |
Paper Core: |
1inch (25.4mm), 2.3inch (58mm), 3inch (76mm) |
Usage: |
Printing Media Laminate |

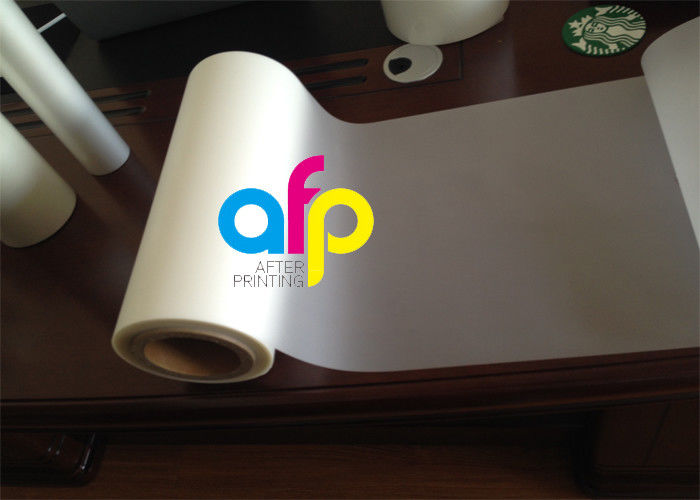

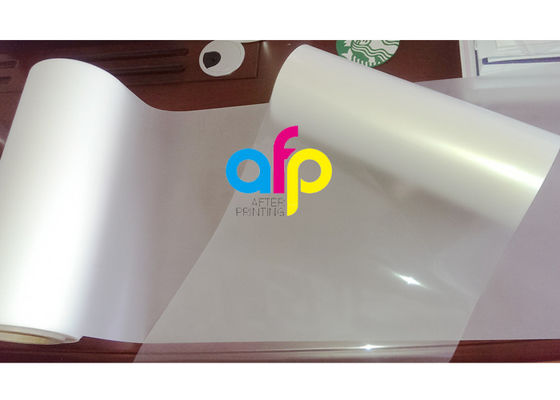

Matt Roll Film Thermal Lamination Film, Mylar Film for Printing Media Laminate
| Product Data Sheet | ||||||||
| Transparent Mylar Thermal Lamination Film | ||||||||
| Specifications | Model No. | AFP-L12 | AFP-L24 | AFP-L32 | AFP-L75 | AFP-L150 | AFP-Y75 | AFP-Y125 |
| Type | Glossy | Glossy | Glossy | Glossy | Glossy | Matte | Matte | |
| Thickness | PET | 6 micron | 12 micron | 20 micron | 50 micron | 100 micron | 50 micron | 75 micron |
| EVA | 6 micron | 12 micron | 12 micron | 25 micron | 50 micron | 25 micron | 50 micron | |
| TOTAL | 12 micron | 24 micron | 32 micron | 75 micron | 150 micron | 75 micron | 125 micron | |
| Yield | m²/kg | 71.225 | 35.613 | 25.458 | 10.695 | 5.438 | 10.695 | 6.579 |
| kg/m² | 0.0140 | 0.0281 | 0.0393 | 0.0935 | 0.1870 | 0.0935 | 0.1520 | |
| Customized thickness- combination available (12 micron to 350 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1400mm | |||||||
| Roll Length | from 50m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm) | |||||||
| Corona Treatment | Single or Double, ≥ 42dyne | |||||||
| Shelf Life | 12 months | |||||||
| MOQ | 1 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 90℃ - 150℃ (194℉ - 302℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-50m/min | |||||||
Mylar, a brand possessed by DUPONT for plastic film, is meaning polyester plastic film.
We are producing Polyester Thermal Lamination Film for printed paper lamination.
We make polyester film as base material layer and EVA as heat sensitive layer.
This two layers is coated by our high speed co-extrusion laminating line.
Generally we produce two types of transparent PET thermal lamination film:
Matt finish lamination film is giving dull appearance, differ from glossy that is giving luster.
It show clear signs and images under direct lighting.
Thickness from 24micron to 250micron
Roll length from 50meter to 4000m (paper core 1", 2.3" or 3").
Roll width from 180mm to 1400mm (customized roll measure available)
Tips:
You are able to take an order of Mylar Thermal Lamination Film with specifications like below:
Packaging & Shipping
*One Roll thermal lamination film, One carton
*Or nine rolls a carton for 1 inch core
*Or nine rolls a carton for 2.3 inch core
*Tens of rolls of thermal lamination film in a pallet
*10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
*Seaport: Xiamen, Shanghai, Ningbo
What is Mylar Thermal Lamination Film?
PET Thermal Lamination Film is one of plastic roll film for printed paper lamination.
It takes PET (polyester) film as base material layer and EVA as heat sensitive layer.
This two layers is coated by our high speed co-extrusion laminating line.
Thermal Lamination Film is also called dry, hot or heat lamination film.
Where is Mylar Thermal Lamination Film Used?
ID Card| Photo | Album | Label | Album | Print Media
How to Use Mylar Thermal Lamination Film ?
Lamination process is of joining two or more layers, aimed for protecting the prints.
we need a hot laminator, or called thermal (heat,dry) lamination roller machine, to use Thermal Lamination Film by melting its EVA adhesive onto paper surface.
During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
This process is easy to use and can be done in home for small applications.
Sometimes, people also call it heat lamination or dry lamination or hot lamination.
FAQ
About Samples
*Samples for testing are available and free
*The freight for sample delivery is at receiver's side
*But to be refunded by deducting from the right coming order automatically
*For saving the cost, we recommend the way of prepaid instead of collect
About Capacity
*5 coating lines
*20 days delivery of a 40 feet container
*850 tons per month
*Thickness from 15micron to 30 micron
*Roll width from 180mm to 1880mm
*Roll length from 2000m to 6000m
*Reel Outer Diameter:240mm to 380mm(upon reel length and width)
*Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
About Responsibility and After-sale Service
*12 months warranty
*In case of any quality problem happens, you must be equivalently compensated
PET Thermal Lamination Film Data Sheet.pdf
