Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, BV,
Model Number: Thermal Lamination Film
Payment & Shipping Terms
Minimum Order Quantity: 1 Tons (Mixed roll widths accepted)
Price: USD2075.00/Ton ~ USD2380.00/Ton
Packaging Details: 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Delivery Time: 15 - 25 working days
Payment Terms: T/T, L/C
Supply Ability: 850 Tons per month
Material: |
PET + EVA |
Type: |
Glossy |
Softness: |
Soft |
Thickness: |
12micron (6PET+6EVA) |
Transparent: |
Transparency |
Roll Size: |
335mm*2000m, 450mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Processing Technology: |
Multiple Extrusion |
Paper Core: |
3inch (76mm) |
Usage: |
Printed Paperboard Or Paper Laminate |
Material: |
PET + EVA |
Type: |
Glossy |
Softness: |
Soft |
Thickness: |
12micron (6PET+6EVA) |
Transparent: |
Transparency |
Roll Size: |
335mm*2000m, 450mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Processing Technology: |
Multiple Extrusion |
Paper Core: |
3inch (76mm) |
Usage: |
Printed Paperboard Or Paper Laminate |

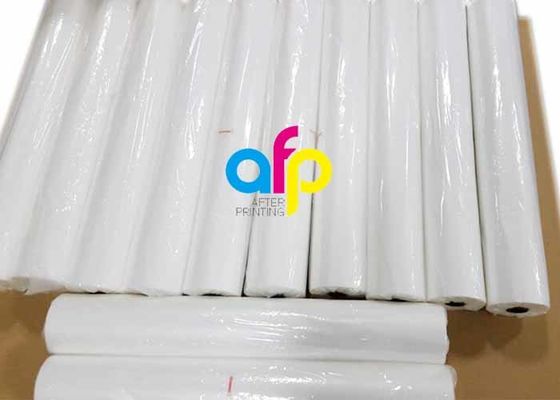

Very Thin Thickness Thermal Lamination Film, 12micron PET Lamination Film
We are producing as thin as 12micron thermal lamination film.
It is made of 6micron PET + 6micron EVA.
This PET (polyester) thermal lamination film yields 71,225m²/kg, which is much more economical than BOPP Thermal Lamination Film.
As a matter of fact, the price difference may be 9%.
Besides, PET thermal lamination film is more transparent and higher clarity than BOPP Film.
It is obviously a better choice for thermal lamination film.
For other thickness, we also produce 14micron (8PET+6EVA), 16micron (10PET+6EVA), 18micron (12PET+6EVA) and 22micron (12PET+10EVA)
| Product Data Sheet | ||||||||
| Transparent Polyester Thermal Lamination Film | ||||||||
| Specifications | Model No. | AFP-L12 | AFP-L24 | AFP-L32 | AFP-L75 | AFP-L150 | AFP-Y75 | AFP-Y125 |
| Type | Glossy | Glossy | Glossy | Glossy | Glossy | Matte | Matte | |
| Thickness | PET | 6 micron | 12 micron | 20 micron | 50 micron | 100 micron | 50 micron | 75 micron |
| EVA | 6 micron | 12 micron | 12 micron | 25 micron | 50 micron | 25 micron | 50 micron | |
| TOTAL | 12 micron | 24 micron | 32 micron | 75 micron | 150 micron | 75 micron | 125 micron | |
| Yield | m²/kg | 71.225 | 35.613 | 25.458 | 10.695 | 5.438 | 10.695 | 6.579 |
| kg/m² | 0.0140 | 0.0281 | 0.0393 | 0.0935 | 0.1870 | 0.0935 | 0.1520 | |
| Customized thickness- combination available (12 micron to 350 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1400mm | |||||||
| Roll Length | from 50m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm) | |||||||
| Corona Treatment | Single or Double, ≥ 42dyne | |||||||
| Shelf Life | 12 months | |||||||
| MOQ | 1 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 90℃ - 150℃ (194℉ - 302℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-50m/min | |||||||
Tips:
You are able to take an order of Polyester Thermal Lamination Film with specifications like below:
Packaging & Shipping
*One Roll PET thermal lamination film, One carton
*Or nine rolls a carton for 1 inch core
*Or nine rolls a carton for 2.3 inch core
*Tens of rolls of thermal lamination film in a pallet
*10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
*Seaport: Xiamen, Shanghai, Ningbo
What is Polyester Thermal Lamination Film?
Thermal lamination film is produced by multi extrusion coating lines.
It is consisted of two layers. One is PET film, another layer is adhesive glue of EVA .
Thermal Lamination Film is also called dry, hot or heat lamination film.
Where is Polyester Thermal Lamination Film Used?
ID Card| Photo | Album | Label | Album | Print Media
How to Use Polyester Thermal Lamination Film ?
Lamination process is of joining two or more layers, aimed for protecting the prints.
we need a hot laminator, or called thermal (heat,dry) lamination roller machine, to use Thermal Lamination Film by melting its EVA adhesive onto paper surface.
During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
This process is easy to use and can be done in home for small applications.
Sometimes, people also call it heat lamination or dry lamination or hot lamination.
FAQ
About Samples
*Samples for testing are available and free
*The freight for sample delivery is at receiver's side
*But to be refunded by deducting from the right coming order automatically
*For saving the cost, we recommend the way of prepaid instead of collect
About Capacity
*5 coating lines
*20 days delivery of a 40 feet container
*850 tons per month
*Thickness from 12micron to 350 micron
*Roll width from 180mm to 1400mm
*Roll length from 2000m to 6000m
*Reel Outer Diameter:240mm to 380mm(upon reel length and width)
*Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
About Responsibility and After-sale Service
*12 months warranty
*In case of any quality problem happens, you must be equivalently compensated
