Product Details:
Payment & Shipping Terms:
|
| Industrial Use: | Post-press Lamination | Material: | BOPP +EVA |
|---|---|---|---|
| Type: | Stretch Film | Hardness: | Soft |
| Transparency: | Transparent | Application: | Paper Or Cardboard Lamination |
| Sample: | Free | Length: | 300-4000m |
| Supply Ability: | 850 Tons Per Month | Packaging Details: | Carton And Pallets |
| Shelf Life: | 12 Months | Port: | Xiamen/Ningbo/Shanghai |
| High Light: | BOPP Thermal Lamination Film Roll,SGS Paper Lamination Film Roll,125gsm Thermal Lamination Roll |
||

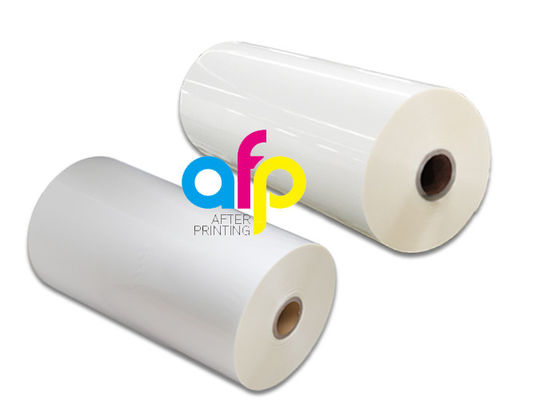

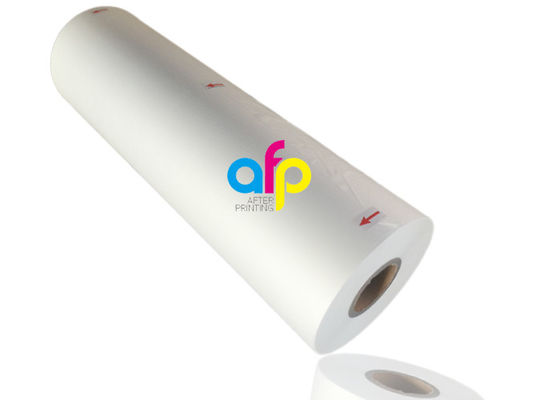

BOPP Thermal lamination film is workable for different ways of printing, especially offset printing.
It is composited of BOPP + EVA.
BOPP, abbreviation of biaxially oriented polypropylene, is the base film that we use extrusion coating process to produce thermal lamination rolls.
EVA, abrreviation of Ethyl Vinyl Acetate is the adhesion combined with BOPP Film.
BOPP thermal lamination film is suitable for most kinds of paper, like 80gsm, 125gsm or 250gsm.
Matt thermal lamination film is well performing at UV Varnish and hot stamping.
We are producing both glossy and matt BOPP Thermal Lamination Film.
| Product Data Sheet | ||||||||
| Strong Bonding Strength BOPP Thermal Laminating Film | ||||||||
| Specifications | Model No. | AFP-L18 | AFP-L21 | AFP-L25 | AFP-L25 | AFP-Y20 | AFP-Y25 | AFP-Y27 |
| Type | Glossy | Glossy | Glossy | Glossy | Matte | Matte | Matte | |
| Thickness | BOPP | 12micron | 12micron | 12micron | 15micron | 12micron | 15micron | 15micron |
| EVA | 6micron | 9micron | 13micron | 10micron | 8micron | 10micron | 12micron | |
| TOTAL | 18micron | 21micron | 25micron | 25micron | 20micron | 25micron | 27micron | |
| Yield | m²/kg | 61.275 | 52.247 | 43.668 | 43.956 | 56.433 | 45.147 | 41.615 |
| kg/m² | 0.0163 | 0.0191 | 0.0229 | 0.0228 | 0.0177 | 0.0222 | 0.024 | |
| Customized thickness- combination available (15 micron to 30 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1880mm | |||||||
| Roll Length | from 300m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 3inch (76.2mm), | |||||||
| Corona Treatment | Single or Double, ≥ 38dyne | |||||||
| Shelf Life | 9 months | |||||||
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-60m/min | |||||||
Tips:
You are able to take an order of BOPP Thermal Lamination Film with specifications like below:
Application
* One roll BOPP thermal lamination film, one carton
* Tens of rolls of thermal lamination film in a pallet
* 10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
* Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
* Seaport: Xiamen, Shanghai, Ningbo
* Samples for testing are available and free
* The freight for sample delivery is at receiver's side
* But to be refunded by deducting from the right coming order automatically
* For saving the cost, we recommend the way of prepaid instead of collect
* 5 coating lines
* 20 days delivery of a 40 feet container
* 850 tons per month
* Thickness from 15micron to 30 micron
* Roll width from 180mm to 1880mm
* Roll length from 2000m to 6000m
* Reel Outer Diameter:240mm to 380mm(upon reel length and width)
* Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
* 9 months warranty
* In case of any quality problem happens, you must be equivalently compensated
