Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, BV,
Model Number: Matte
Payment & Shipping Terms
Minimum Order Quantity: 2 Tons (Mixed roll width accepted)
Price: USD2155.00/Ton ~ USD2388.00/Ton
Packaging Details: 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Delivery Time: 15 - 25 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 850 Tons per month
Material: |
BOPP + EVA |
Processing Type: |
Multiple Extrusion |
Roll Length: |
Customized |
Thickness: |
From 15mic To 30mic |
Transparent: |
Transparency |
Roll Width: |
Customized |
Corona Treatment: |
Double Sides Or Single Side |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Certification: |
SGS , ISO9001 |
Joint: |
≤2 |
Material: |
BOPP + EVA |
Processing Type: |
Multiple Extrusion |
Roll Length: |
Customized |
Thickness: |
From 15mic To 30mic |
Transparent: |
Transparency |
Roll Width: |
Customized |
Corona Treatment: |
Double Sides Or Single Side |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Certification: |
SGS , ISO9001 |
Joint: |
≤2 |

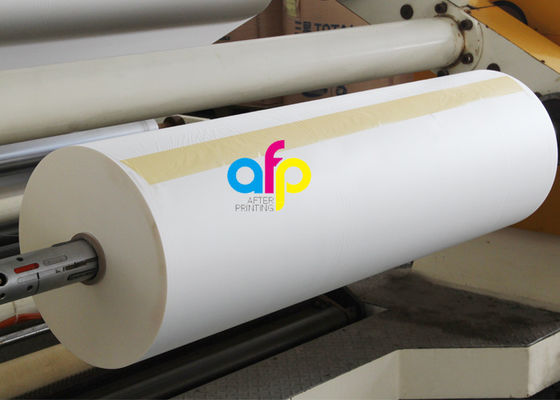

23micron Dry Matte BOPP Thermal Laminating Film Coating With EVA Glue
| Product Data Sheet | ||||||||
| Matte White BOPP Thermal Laminating Film | ||||||||
| Specifications | Model No. | AFP-L18 | AFP-L21 | AFP-L25 | AFP-L25 | AFP-Y20 | AFP-Y25 | AFP-Y27 |
| Type | Glossy | Glossy | Glossy | Glossy | Matte | Matte | Matte | |
| Thickness | BOPP | 12 micron | 12 micron | 12 micron | 15 micron | 12 micron | 15 micron | 15 micron |
| EVA | 6 micron | 9 micron | 13 micron | 10 micron | 8 micron | 10 micron | 12 micron | |
| TOTAL | 18 micron | 21 micron | 25 micron | 25 micron | 20 micron | 25 micron | 27 micron | |
| Yield | m²/kg | 61.275 | 52.247 | 43.668 | 43.956 | 56.433 | 45.147 | 41.615 |
| kg/m² | 0.0163 | 0.0191 | 0.0229 | 0.0228 | 0.0177 | 0.0222 | 0.024 | |
| Customized thickness- combination available (15 micron to 30 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1880mm | |||||||
| Roll Length | from 300m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 3inch (76.2mm), | |||||||
| Corona Treatment | Single or Double, ≥ 38dyne | |||||||
| Shelf Life | 9 months | |||||||
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-60m/min | |||||||
BOPP Matte Thermal Laminating Film is BOPP film coat with EVA glue, thickness range from15mic to 30mic. 180mm to 1880mm roll width and 300m to 6000 roll length is usually range, paper core with 1 inch(25.4mm) and 3 inch(76mm) as client required. It's widely used for laminating with paper to packing and printing. It has seeing high transparency and excellent rewinding, nice performance at UV varnish with double corona treatment valued above 42dyne.
Tips:
You are able to take an order of BOPP Thermal Lamination Plastic Film Roll like this:
Where is BOPP Thermal Lamination Film Used?
Generally, the printing house uses BOPP Thermal Lamination Film rolls for commercial and school printings.
it can also be used to graphic arts large format.
the transparent film lamination, bright/shine/glossy or matte/dull, is heated as protection on the paper cover.
Sometimes people call it as paper lamination film used by heating eva adhesive glue into paper substrates.
To be specifica, the application of BOPP Thermal Laminating Film Roll can be used to:
Textbook covers | Brochures | Leaflets | Sweet boxes and diaries | Shopping bags | Cosmetics boxes
How to Use BOPP Thermal Lamination Film?
Lamination process is of joining two or more layers, aimed for protecting the prints.
we need a hot laminator, or called thermal (heat,dry) lamination roller machine, to use BOPP Thermal Lamination Film by melting its EVA adhesive onto paper surface.
During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
This process is easy to use and can be done in home for small applications.
Sometimes, people also call it heat lamination or dry lamination or hot lamination.
We Are the Difference
In order to guarantee high product quality, we carry out very strict management principle all the times.
Every detail of processing is well controlled with special attention.
In case of a bad roll found, we will make compensation as responsibility.
Original Buyer Feedback
All the real feedback are from the customers who finished sample testing or started using a shipment.
Coming more and more...
Packaging & Shipping
* One Roll bopp thermal lamination film, One carton
* Tens of rolls of bopp thermal lamination film in a pallet
* 10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
* Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
* Seaport: Xiamen, Shanghai, Ningbo
FAQ
About Samples
* Samples for testing are available and free
* The freight for sample delivery is at receiver's side
* But to be refunded by deducting from the right coming order automatically
* For saving the cost, we recommend the way of prepaid instead of collect
About Capacity
* 2 coating lines
* 20 days delivery of a 40 feet container
* 850 tons per month
* Thickness from 15micron to 30 micron
* Roll width from 180mm to 1880mm
* Roll length from 2000m to 6000m
Reel Outer Diameter:240mm to 380mm(upon reel length and width)
* Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
About Responsibility and After-sale Service
* 9 months warranty
* In case of any quality problem happens, you must be equivalently compensated
Contact us now to get update BOPP Thermal Lamination Film roll price and free samples for testing on paper laminating machines.
