Product Details:
Payment & Shipping Terms:
|
| Transparency: | Clear/Transparent | Processing Type: | Multiple Extrusion |
|---|---|---|---|
| Hardness: | Soft | Feature: | Moisture Proof |
| Thickness: | 12.5micron, 15micron, 19micron, 25micron | Roll Widht: | 200mm - 1600mm |
| Roll Length: | 1600m To 3200m Of Single Wound, 800m To 1600m Of Center-folded | MOQ: | 2,000kgs (multi Roll Width Available Within An Order) |
| Shrinkage Ratio: | Over 60% | Shelf Life: | 24 Months |
| High Light: | polyolefin heat shrink film,shrink wrap film rolls |
||

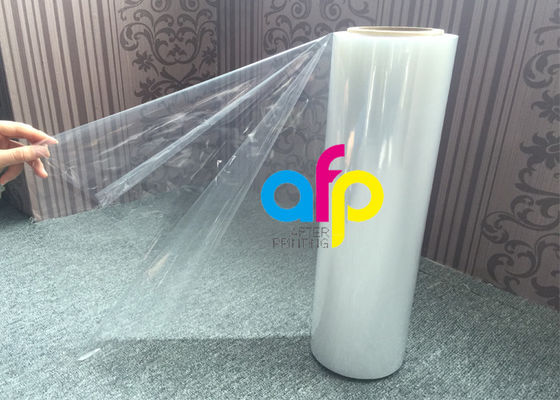

Polyolefin POF shrink film is available in finish of singel would, center folded(also called half sleeve), tube(also called sleeve), it is a heat shrink material widely used for wrapping products such as books, cups, toys, etc.
Technical Datas on POF Shrink Film |
||||||
| Property | Unit | Test Method | Representative Value | |||
| Physical Property | ||||||
| Thickness | Micron | 12.5 | 15 | 19 | 25 | |
| Gauge | 50 | 60 | 75 | 100 | ||
| Density | g/cm³ | 0.922 | 0.922 | 0.922 | 0.922 | |
| Tensile Property (MD/TD) | ||||||
| Elastic Mouduls | N/mm² | ASTM-D882A | 330/450 | 340/450 | 350/450 | 360/450 |
| Tensile Strength | MPa | ASTM-882 | 110/110 | 110/110 | 110/110 | 105/105 |
| Elongation at Break | % | ASTM-882 | 105/110 | 105/110 | 110/110 | 110/115 |
| Seal Strength | g/cm³ | Internal Method | 610 | 870 | 1025 | 1250 |
| N/mm² | 40 | 57 | 53 | 49 | ||
| Tear Propagation | g/cm³ | ASTM-D1938 | 6 | 5.5 | 9.5 | 14.5 |
| COF film to film | Adim | ASTM-D1894 | 0.2 | 0.2 | 0.2 | 0.2 |
| Free Shrink at 130℃ | % | ASTM-D2732 | 70/70 | 70/70 | 70/70 | 70/70 |
| Optical Property | ||||||
| Haze | % | ASTM-D1003 | 1.1 | 1.3 | 1.8 | 2.3 |
| Gloss | % | ASTM-D2457 | 135 | 135 | 135 | 130 |
| Dimension Specification | ||||||
| Width | mm | 100 ~ 2200 (available to multi roll widths within an order) | ||||
| Length | single wound | 3100m | 2664m | 2134m | 1600m | |
| center-folded | 1550m | 1332m | 1067m | 800m | ||
Polyolefin shrink film is now the most widely used shrink packaging materials due to being cost effective, strong, shape conforming and tamper evident.
it is clear, elastic and has a smooth texture.
it is composted of Polypropylene (PP) and Polyethylene (PE) which are non-toxic and non-smelly.
this product is environmentally friendly, approved by FDA for direct food contact
it can protect your products efficiently and doesn’t emit harmful gas during usage.
it is a strong and high clarity biaxial oriented heat shrinkable film that has stable & balanced shrinkage and soft corner during packaging.
*Suitable for all types of food, chemical products, hardwares, soap, sport equipment, books and magzines etc.
*Used to regular and irregular shape products like cups, stationery, toys, cosmetics, drinking tins, bottle
1, about packing
each roll of POF shrink film is packed by carton
cartons of POF shrink film roll will be packed into pallet
10 to 12 pallets loaded into 1*20FCL container(about 1000 rolls)
or 20 ~ 22 pallets loaded into 1*40GP container(about 2000 rolls)
2, about price
price differs from the thickness, type, quantity, etc
3, about sample
sample for testing are available and free
4, about after-sale service
9 months warranty
In case of any quality problem happens, you must be equivalently compensated
