Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, ISO9001
Model Number: Polyolefin Shrink Film
Payment & Shipping Terms
Minimum Order Quantity: 2000kgs
Price: USD 1.93~2.25/kg
Packaging Details: One roll, one carton; tens of carton on one pallet; pallets in container
Delivery Time: 14 - 25 days
Payment Terms: L/C, TT, Western Union
Supply Ability: 2,000,000tons per month
Transparency: |
Clear/Transparent |
Processing Type: |
Multiple Extrusion |
Feature: |
Moisture Proof |
Thickness: |
12/15/19/25/30micron |
Roll Width: |
200~600mm |
Roll Length: |
1600~3200m |
MOQ: |
2,000kgs (multi Roll Width Available) |
Shrinkage Ratio: |
Over 60% |
Shelf Life: |
24 Months |
Paper Core: |
3 Inch(76mm) |
Transparency: |
Clear/Transparent |
Processing Type: |
Multiple Extrusion |
Feature: |
Moisture Proof |
Thickness: |
12/15/19/25/30micron |
Roll Width: |
200~600mm |
Roll Length: |
1600~3200m |
MOQ: |
2,000kgs (multi Roll Width Available) |
Shrinkage Ratio: |
Over 60% |
Shelf Life: |
24 Months |
Paper Core: |
3 Inch(76mm) |

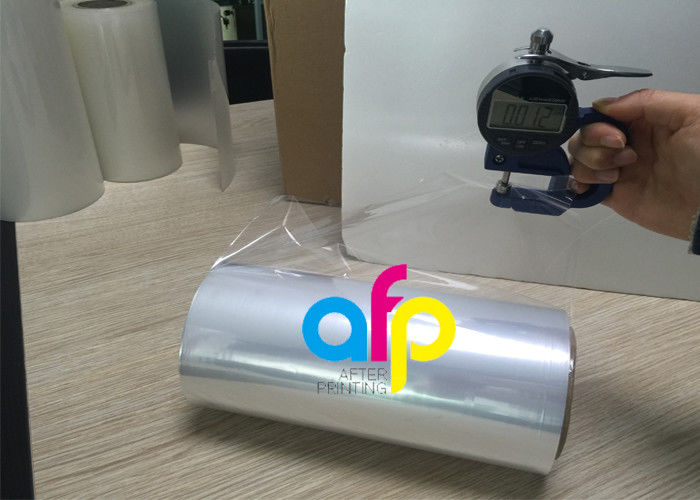

Polyolefin POF shrink film single would type is available in thickness of 12/15/19/22/25/30micron, It is a high quality wrapping material for books, food(no food directly), etc. The POF film type is determined by the machine customer adopt, different wrapping machines are supposed to adopt shrink film type.
Technical Datas on POF Shrink Film |
||||||
| Property | Unit | Test Method | Representative Value | |||
| Physical Property | ||||||
| Thickness | Micron | 12.5 | 15 | 19 | 25 | |
| Gauge | 50 | 60 | 75 | 100 | ||
| Density | g/cm³ | 0.922 | 0.922 | 0.922 | 0.922 | |
| Tensile Property (MD/TD) | ||||||
| Elastic Mouduls | N/mm² | ASTM-D882A | 330/450 | 340/450 | 350/450 | 360/450 |
| Tensile Strength | MPa | ASTM-882 | 110/110 | 110/110 | 110/110 | 105/105 |
| Elongation at Break | % | ASTM-882 | 105/110 | 105/110 | 110/110 | 110/115 |
| Seal Strength | g/cm³ | Internal Method | 610 | 870 | 1025 | 1250 |
| N/mm² | 40 | 57 | 53 | 49 | ||
| Tear Propagation | g/cm³ | ASTM-D1938 | 6 | 5.5 | 9.5 | 14.5 |
| COF film to film | Adim | ASTM-D1894 | 0.2 | 0.2 | 0.2 | 0.2 |
| Free Shrink at 130℃ | % | ASTM-D2732 | 70/70 | 70/70 | 70/70 | 70/70 |
| Optical Property | ||||||
| Haze | % | ASTM-D1003 | 1.1 | 1.3 | 1.8 | 2.3 |
| Gloss | % | ASTM-D2457 | 135 | 135 | 135 | 130 |
| Dimension Specification | ||||||
| Width | mm | 100 ~ 2200 (available to multi roll widths within an order) | ||||
| Length | single wound | 3100m | 2664m | 2134m | 1600m | |
| center-folded | 1550m | 1332m | 1067m | 800m | ||
Polyolefin shrink film is now the most widely used shrink packaging materials due to being cost effective, strong, shape conforming and tamper evident.
it is clear, elastic and has a smooth texture.
it is composted of Polypropylene (PP) and Polyethylene (PE) which are non-toxic and non-smelly.
*Suitable for all types of food, chemical products, hardwares, soap, sport equipment, books and magzines etc.
*Used to regular and irregular shape products like cups, stationery, toys, cosmetics, drinking tins, bottle
1, About Packing
each roll of POF shrink film is packed by carton
cartons of POF shrink film roll will be packed into pallet
10 to 12 pallets loaded into 1*20FCL container(about 1000 rolls)
or 20 ~ 22 pallets loaded into 1*40GP container(about 2000 rolls)
2, About Price
price differs from the thickness, type, quantity, etc
3, About Sample
sample for testing are available and free
4, About After-sale Service
9 months warranty
In case of any quality problem happens, you must be equivalently compensated
