Payment & Shipping Terms:
|Material:||BOPP + EVA||Type:||BOPP Thermal Laminating Film|
|Softness:||Soft||Thickness:||18micron, 21micron, 25micron, Etc.|
|Transparency:||Transparent||Roll Size:||495mm*3000m, 600mm*3000m, Etc.|
|Corona:||Double Sides, Over 38 Dynes||Paper Core:||1 Inch (25.4mm), 3"(76mm)|
|Technology:||Multiple Extrusion||Usage:||Printed Paperboard Or Paper Laminate|
matte pet film,
laminating roll film
Elegant Matt Lamination Hot Film
Double Corona Treatment valued 42dynes
Excellent Performance at UV Spot and Hot Stamping!

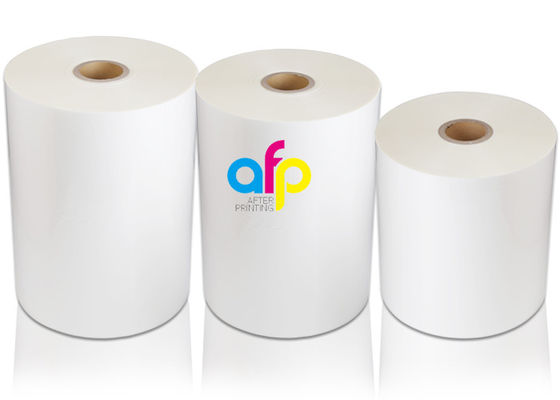

What’s BOPP Thermal Lamination Film?
BOPP Thermal Laminating Film is mainly made of BOPP + EVA.
we use the extrusion coating process to combine this two layers.
in the final film, one side has properties of BOPP film and the other side becomes a heat sensitive surface used for dry lamination.
this product has two classifications: glossy/shine/transparent and matte/opaque, both of which sees thickness from 14micron to 32micron.
its width could be from 180mm to 1880mm and length from 150m (1 inch core, 25mm) to 4000m (3 inch core, 76mm).
Where is BOPP Thermal Laminating Film Used?
the application of BOPP Thermal Laminating Film can be used to the followings:
How to Use BOPP Thermal Lamination Film?
We need a laminating machine (usually called hot laminator) to use BOPP Thermal Laminating Film by melting the EVA into substrates such as paper.
during the process, the film is passed on a heated roller and under reasonable pressure, it sticks to the paper.
this process is easy to use and can be done at home for small applications.
sometimes, people also call it heat lamination or dry lamination or hot lamination.
1. Adjust roller pressure and temperature according to different types of paper and ink.
2. When using the film for the first time or changing the usual size, a small trial volume before starting massive lamination is proposed.
3. The normal process temperature is 90C-105C (203F - 221F), roller pressure and temperature vary from different types of paper, ink, and machines.
4. Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture or powder.
5. Make sure to put the material in place with low temperature and dry.
6. The following situation will affect the final quality of the film during lamination.
a. Using metal ink
b. Ink containing too much wax, dried oil, adhesive, silicon additive and so on.
c. Much too thick ink
d. Ink completely not dried yet.
e. Much too humid paper sheet.
f. Too much powder on the surface
|Thickness(u m)||BOPP||12 micron||
|12 micron||15 micron||12 micron||15 micron||15 micron|
|EVA||6 micron||9 micron||13 micron||10 micron||8 micron||10 micron||12 micron|
|TOTAL||18 micron||21 micron||25 micron||25 micron||20 micron||25 micron||27 micron|
Customized thickness- combination available (15 micron to 30 micron, glossy and matte)
Price by MT or square meter available
You are able to place an order of BOPP Thermal Lamination Film like this:
Glossy 22micron (12BOPP+10EVA)
350mm(13.8") x 3000m(9843') x 30rolls (weight 654.60kgs = 21.82kgs x 30rolls, square meter 31,500m²)
445mm(17.5") x 3000m(9843') x 20rolls (weight 554.80kgs = 27.74kgs x 20rolls, square meter 26,700m²)
Matte 25micron (15BOPP+10EVA)
350mm(13.8") x 3000m(9843') x 30rolls (weight 719.70kgs = 23.99kgs x 30rolls, square meter 31,500m²)
445mm(17.5") x 3000m(9843') x 20rolls (weight 610.00kgs = 30.50kgs x 20rolls, square meter 26,700m²)
TOTALLY 100 rolls, weight 2,539.10kgs, square meter 116,400m²
|Most popular specification & roll weight of BOPP Thermal Laminating Film|
(12 BOPP+10 EVA)
(12 BOPP+13 EVA)
(15 BOPP+10 EVA)
|350mm||*||3000m||Glossy/Shine/ Brillante||17.87 kgs/roll||21.82 kgs/roll||24.78 kgs/roll||24.62 kgs/roll|
|Matte/Dull||17.37 kgs/roll||21.31 kgs/roll||24.27 kgs/roll||23.99 kgs/roll|
|445mm||*||3000m||Glossy/Shine/ Brillante||22.72 kgs/roll||27.74 kgs/roll||31.50 kgs/roll||31.30 kgs/roll|
|Matte/Dull||22.08 kgs/roll||27.10 kgs/roll||30.86 kgs/roll||30.50 kgs/roll|
|500mm||*||3000m||Glossy/Shine/ Brillante||25.53 kgs/roll||31.17 kgs/roll||35.40 kgs/roll||35.17 kgs/roll|
|Matte/Dull||24.81 kgs/roll||30.45 kgs/roll||34.68 kgs/roll||34.27 kgs/roll|
|600mm||*||3000m||Glossy/Shine/ Brillante||30.63 kgs/roll||37.40 kgs/roll||42.48 kgs/roll||42.21 kgs/roll|
|Matte/Dull||29.77 kgs/roll||36.54 kgs/roll||41.61 kgs/roll||41.13 kgs/roll|
|700mm||*||3000m||Glossy/Shine/ Brillante||34.73 kgs/roll||43.64 kgs/roll||49.56 kgs/roll||49.24 kgs/roll|
|Matte/Dull||42.63 kgs/roll||42.63 kgs/roll||48.55 kgs/roll||47.98 kgs/roll|
Features of BOPP Thermal Laminating Film
As an environment-friendly product, BOPP Thermal Laminating Film features as below:
#1 Healthy Lamination Process
It is non-hazardous to health and safety to be used for being without toxic gases nor volatile content.
It is also safe during the laminating process due to no solvent-based adhesive used.
#2 Easy Operation
It requires no action of using and blending the rubber, solvent, diluent and so on which is much easier during handling and cost-saved compared with the old way.
No special technique required, just laminate when the temperature gets adequate.
It is recommended to laminate the film with a dry laminator. Just small adjustment to the machine needed if the film is laminated with the wet laminator.
#3 High Efficiency and Energy-saving
Production cost is substantially reduced due to no wastage of film generated, no mixing of adhesive, no coating and drying processes, nor UV heating lamp required.
#4 Outstanding Function and Effect
It enhances the finished item’s value through high transparency and super luster finish.
Preventing lamination from being pressed, bubbled and desquamated.
Protected from harmful substances and water-proof, ensuring a long life storage for the printings.
Particularly, matte BOPP Thermal Lamination Film is good for UV varnishing and hot stamping.
Shipping & Packaging
*One Roll bopp matt thermal lamination film, One carton
*Tens of rolls of bopp thermal lamination film in a pallet
*10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
*Seaport: Xiamen, Shanghai, Ningbo
Airbags Used for Protecting the Pallets from Collision When Container is Loading…
In order to guarantee high product quality, we carry out a very strict management principle all the times.
Every detail of processing is well controlled with special attention.
In case of a bad roll found, we will make compensation as responsibility.
We Are The Difference
Real Buyer Feedback
All the feedbacks are from the customers who finished sample testing or started using a shipment.
