Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, BV,
Model Number: Matte Lamination Film
Payment & Shipping Terms
Minimum Order Quantity: 30000 Square Meters (Mixed roll widths accepted)
Price: USD 0.168 ~ 0.185/SQM
Packaging Details: Paper Carton and wooden/plastic pallet
Delivery Time: 15 - 25 working days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 850 Tons per month
Material: |
BOPP + EVA |
Type: |
Matte |
Softness: |
Soft |

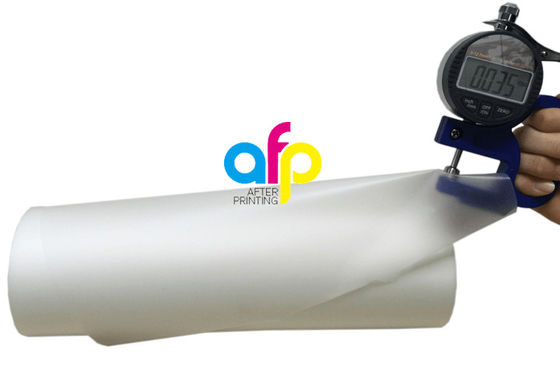

Thickness: |
35micron(15 BOPP + 20 Glue) |
Roll Width: |
100mm~1880mm |
Roll Length: |
300~500m For 1 Inch; 3000/4000m For 3 Inch |
Processing: |
Multiple Extrusion |
Shelf Life: |
24 Month |
Material: |
BOPP + EVA |
Type: |
Matte |
Softness: |
Soft |
Thickness: |
35micron(15 BOPP + 20 Glue) |
Roll Width: |
100mm~1880mm |
Roll Length: |
300~500m For 1 Inch; 3000/4000m For 3 Inch |
Processing: |
Multiple Extrusion |
Shelf Life: |
24 Month |
BOPP digital matte lamination film is also called super sticky BOPP matte lamination film, it serves high sticky which due to special composition and treatment on the laminaiton film. With composition of 15 micron BOPP film coated with 20 micron EVA adhesion, its application is mainly used for digital printing field.
Item | 35micron Super Sticky Digital Matte Lamination Film for Digital Printing | ||
Material | BOPP + EVA | Roll Width | from 180mm to1880mm |
Thickness25 | 35micron | Roll Length | from 300m to 4000m |
Core Size | 1 inch(25.4mm), 3 inch(76.2mm) | Corona Treatment | Single or Double |
Joint | ≤1 | Sur.Tension | up to 38 dynes |
MOQ | 2 tons | Shelf Life | 24 months |
Application | Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries | ||
APPLICATION GUIDANCE |
|
|
|
Compound Temperature |
85℃ ~ 110℃ (185℉ ~ 230℉) | ||
Compound Pressure |
10 ~ 18 mpa | ||
Compound Speed |
10 ~ 60 m/min |
Packaging & Shipping
* for 3 inch core, the packing is one roll digital matte lamination film, one carton
* for 1 inch core, the packing is 6/9/10 rolls per carton
* Tens of rolls of thermal lamination film in a pallet
* 10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
* Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
* Seaport: Xiamen, Shanghai, Ningbo
Thermal lamination film is produced by multi extrusion coating lines.
It is consisted of two layers. One is plastic film, of which mainly is BOPP or PET film, another layer is adhesive glue of EVA .
Thermal Lamination Film is also called dry, hot or heat lamination film.
Generally, the printing house uses BOPP Thermal Lamination Film rolls for commercial and school printings. It can also be used to graphic arts large format. The transparent film lamination, bright/shine/glossy or matte/dull, is heated as protection on the paper cover.
Sometimes people call it as paper lamination film used by heating eva adhesive glue into paper substrates.
To be specifica, the application of BOPP Thermal Laminating Film Roll can be used to:
Textbook covers | Brochures | Leaflets | Sweet boxes and diaries | Shopping bags | Cosmetics boxes
Lamination process is of joining two or more layers, aimed for protecting the prints.
we need a hot laminator, or called thermal (heat,dry) lamination roller machine, to use Thermal Lamination Film by melting its EVA adhesive onto paper surface.
During the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
This process is easy to use and can be done in home for small applications.
Sometimes, people also call it heat lamination or dry lamination or hot lamination.
1, about samples
Samples for testing are available and free
The freight for sample delivery is at receiver's side
But to be refunded by deducting from the right coming order automatically
For saving the cost, we recommend the way of prepaid instead of collect
2, about capacity
5 coating lines
20 days delivery of a 40 feet container
850 tons per month
Thickness from 17micron to 32 micron
Roll width from 180mm to 1880mm
Roll length from 300m to 4000m
Reel outer diameter: 240mm to 380mm(upon reel length and width)
Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
3, about responsibility and after-sale service
9 months warranty
In case of any quality problem happens, you must be equivalently compensated
4, about Certification
Below are some certificate AfterPrinting offered, feel free to advise if you need specific certificates:
