Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS, BV,
Model Number: Pouch Lamination Film
Payment & Shipping Terms
Minimum Order Quantity: 100 boxes
Price: Negotiable
Packaging Details: 50pcs or 100pcs in one polybag that are packed into a plain white or brand colorful box. Boxes in cartons that are packed onto pallet. Approximatley, 1,200cartons fixed into a 20feet container. Outer Package: --plain white box, or brand colorful box --cu
Delivery Time: 5 ~ 20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25,000boxes per week
Material: |
PET + EVA |
Type: |
Lamination Pouch Film |
Hardness: |
Rigid |
Thickness: |
From 36micron To 250micron |
Processing Technology: |
Multiple Extrusion |
Transparent: |
Transparency |
Feature: |
Moisture Proof |
Size: |
From 54*86mm To A2 (426*600mm) |
Machine: |
Heat Laminator |
Usage: |
Printed Paperboard Or Paper Laminate |
Material: |
PET + EVA |
Type: |
Lamination Pouch Film |
Hardness: |
Rigid |
Thickness: |
From 36micron To 250micron |
Processing Technology: |
Multiple Extrusion |
Transparent: |
Transparency |
Feature: |
Moisture Proof |
Size: |
From 54*86mm To A2 (426*600mm) |
Machine: |
Heat Laminator |
Usage: |
Printed Paperboard Or Paper Laminate |

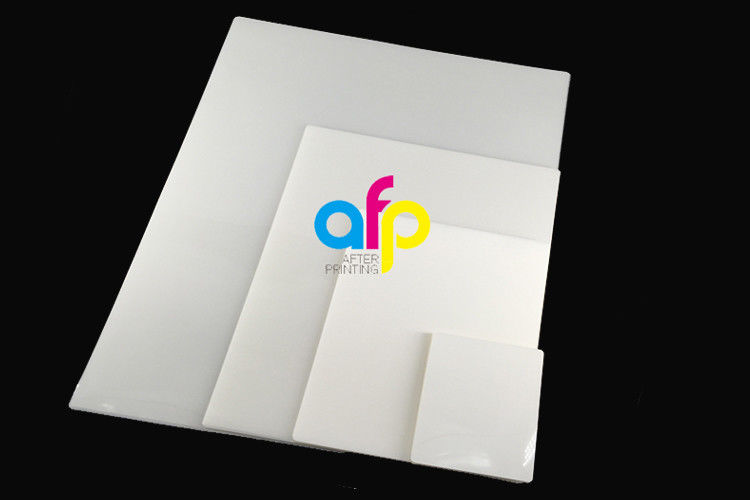

High Gloss Polyester Pouch Lamination Film PET+ EVA, Size A2/A3/A4/A5/A6/A7/A8/B4/B5
Specifications
| General Popular Specifications-Pouch Laminating Film | ||||||||||
| Popular Thickness | Popular Size | Application | Packing | |||||||
| Micron | Mil | Gauge | MM | Inch | ||||||
| 60micron | 2.4mil | 240gauge | 54mm | * | 86mm | 2.13 | * | 3.39 | Credit Card | 100pcs/box |
| 75micron | 3.0mil | 300gauge | 59mm | * | 83mm | 2.32 | * | 3.27 | IBM (Data) | 100pcs/box |
| 80micron | 3.1mil | 320gauge | 57mm | * | 95mm | 2.24 | * | 3.74 | Business | 100pcs/box |
| 100micron | 3.9mil | 400gauge | 64mm | * | 92mm | 2.52 | * | 3.62 | School | 100pcs/box |
| 125micron | 4.9mil | 500gauge | 64mm | * | 98mm | 2.52 | * | 3.86 | Key Card | 100pcs/box |
| 150micron | 5.9mil | 600gauge | 60mm | * | 92mm | 2.36 | * | 3.62 | Driver's License | 100pcs/box |
| 175micron | 6.9mil | 700gauge | 64mm | * | 108mm | 2.52 | * | 4.25 | Luggage | 100pcs/box |
| 200micron | 7.9mil | 800gauge | 67mm | * | 98mm | 2.64 | * | 3.86 | Millitary | 100pcs/box |
| 250micron | 9.8mil | 1000gauge | 75mm | * | 105mm | 2.95 | * | 4.13 | Jumbo | 100pcs/box |
| 350micron | 13.8mil | 1400gauge | 80mm | * | 115mm | 3.15 | * | 4.53 | Special | 100pcs/box |
| 90mm | * | 140mm | 3.54 | * | 5.51 | File (Index) | 100pcs/box | |||
| 90mm | * | 135mm | 3.54 | * | 5.31 | Postal | 100pcs/box | |||
| 1. Glossy & Matte available | 100mm | * | 145mm | 3.94 | * | 5.71 | Circulation | 100pcs/box | ||
| 2. Colorful appearance available | 100mm | * | 175mm | 3.94 | * | 6.89 | Extra Circulation | 100pcs/box | ||
| 152mm | * | 228mm | 5.98 | * | 8.98 | OBT | 100pcs/box | |||
| Laminating Temperature | 228mm | * | 292mm | 8.98 | * | 11.50 | Letter | 100pcs/box | ||
| 110℃ - 135℃ (230 - 275℉) | 228mm | * | 368mm | 8.98 | * | 14.49 | Legal | 100pcs/box | ||
| 292mm | * | 444mm | 11.50 | * | 17.48 | Double Letter | 100pcs/box | |||
| 305mm | * | 457mm | 12.1 | * | 17.99 | Full Double Letter | 100pcs/box | |||
| 111mm | * | 154mm | A6 | 100pcs/box | ||||||
| 135mm | * | 188mm | B5 | 100pcs/box | ||||||
| 154mm | * | 216mm | A5 | 100pcs/box | ||||||
| 216mm | * | 303mm | A4 | 100pcs/box | ||||||
| 303mm | * | 426mm | A3 | 50pcs/box | ||||||
| 426mm | * | 600mm | A2 | 50pcs/box | ||||||
| PET Roll Lamination Film also available, paper core 1"(25.4mm) ,2.5"(63.5mm) or 3"(76mm) | ||||||||||
| (thickness from 17micron to 350micron, roll length from 50m to 4000m and width from 180mm to 1400mm) | ||||||||||
PET Polyester Pouch Lamination Film is common lamination process to make simple and smaller laminates. We use to laminate id cards, tags and small paper materials. Lamination width is limited in pouch laminators. This is useful in offices and home. Laminating equipment for laminating pouches is handy and need no training to operate.
We use heat sensitive laminating film for pouch lamination. Sheet with lamination films passed through heated rollers and due to the effect of heat it sticks together. Heated rollers moves with reasonable speeds applying some pressure on the laminate. Both pressure and temperature contribute for bonding strength of the laminating pouch.
ID cards are made by this process very easily.
Item: Lamination Pouch Film
Material: PET+EVA
Type: Glossy & Matte
Size: Various usage and sizes (all depends upon market demand)
Thicknes: 60mic to 350mic
Application
PET Pouch Lamination Film is widely used as protective layer on ID card, cultural and historical document,photo,credit card ,license,as well as representative card etc.
The laminated work possess fine properties of waterproof ,anti-altering, moisture proof.
Also it will be well reserved against worm, corrosion with high transparence.
Packaging & Shipping
50pcs or 100pcs in one polybag that are packed into a plain white or brand colorful box. Boxes in cartons that are packed onto pallet.
Approximatley, 1,200cartons fixed into a 20feet container.
Outer Package:
--plain white box, or brand colorful box
--customized colorful paperbag
--customized colorful OPP bag
Mainly depends upon customized requirement
FAQ
About Samples
*Samples for testing are available and free
*Usually 10 pcs of each thickness and size
*For favorite measures, please fell free to advise
*The freight for sample delivery is at receivers's side
*But to be refunded by deducting from the right coming order automatically
*For saving the cost, we recommend the way of prepaid instead of collect
About After-sale Service
* 12 months warranty
* In case of any quality problem happens, you must be equivalently compensated
Pouch Laminating Film Data Sheet.pdf
