Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: FDA, EN 71-3, CPSIA, REACH
Model Number: Glossy & Matte
Payment & Shipping Terms
Minimum Order Quantity: 2 Tons (Mixed roll width accepted)
Price: USD2355.00/Ton ~ USD2588.00/Ton
Packaging Details: 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Delivery Time: 15 - 25 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Tons per month
Material: |
BOPP + EVA |
Type: |
BOPP Thermal Laminating Film |
Softness: |
Soft |
Thickness: |
15micron, 18micron, 20micron, 23micron, 25micron |
Transparent: |
Transparency |
Roll Size: |
350mm*3000m, 445mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Technology: |
Multiple Extrusion |
Usage: |
Printed Paperboard Or Paper Laminate |
Material: |
BOPP + EVA |
Type: |
BOPP Thermal Laminating Film |
Softness: |
Soft |
Thickness: |
15micron, 18micron, 20micron, 23micron, 25micron |
Transparent: |
Transparency |
Roll Size: |
350mm*3000m, 445mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Technology: |
Multiple Extrusion |
Usage: |
Printed Paperboard Or Paper Laminate |

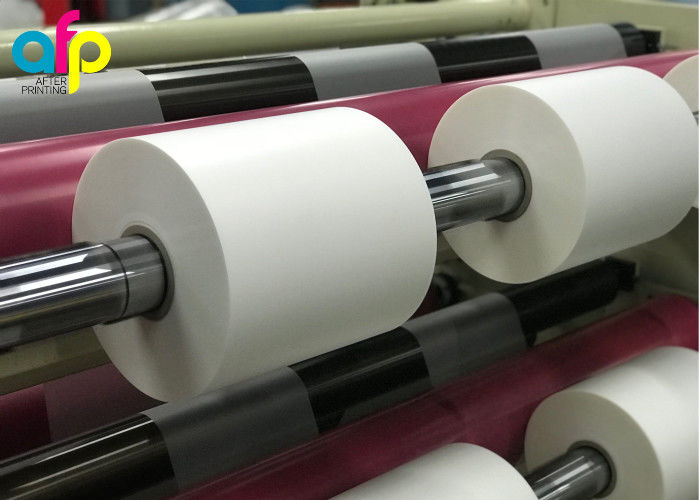

Premium Quality White BOPP Thermal Laminating Film with Strong Bonding Strength
The thermal laminating film is used to laminate paper printings pursuing effect of more luster, elegant, visually comfortable sense, and comfortable touch sense.
It prevents lamination jobs from being pressed, bubbled and desquamated.
We take BOPP film as the basic material to produce via high-speed multi extrusion coating lines.
Compared with normal BOPP thermal laminating film, we are producing premium quality one that looks more white and is better applied to various paper and paperboard.
What is more, our thermal laminating films are with much stronger bonding strength.
As the process of application, thermal laminating requires a laminator machine that will stick the laminating film into the surface of printings by heating the adhesive layer.
Sometimes, people also call it heat laminating film, dry laminating film or hot laminating film.
|
Applications:
|
|
| Product Data Sheet | ||||||||
| Strong Bonding Strength BOPP Thermal Laminating Film | ||||||||
| Specifications | Model No. | AFP-L18 | AFP-L21 | AFP-L25 | AFP-L25 | AFP-Y20 | AFP-Y25 | AFP-Y27 |
| Type | Glossy | Glossy | Glossy | Glossy | Matte | Matte | Matte | |
| Thickness | BOPP | 12micron | 12micron | 12micron | 15micron | 12micron | 15micron | 15micron |
| EVA | 6micron | 9micron | 13micron | 10micron | 8micron | 10micron | 12micron | |
| TOTAL | 18micron | 21micron | 25micron | 25micron | 20micron | 25micron | 27micron | |
| Yield | m²/kg | 61.275 | 52.247 | 43.668 | 43.956 | 56.433 | 45.147 | 41.615 |
| kg/m² | 0.0163 | 0.0191 | 0.0229 | 0.0228 | 0.0177 | 0.0222 | 0.024 | |
| Customized thickness- combination available (15 micron to 30 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1880mm | |||||||
| Roll Length | from 300m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 3inch (76.2mm), | |||||||
| Corona Treatment | Single or Double, ≥ 38dyne | |||||||
| Shelf Life | 9 months | |||||||
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-60m/min | |||||||
| Raw Material Inspection | Adhesion Coating | Quality Testing | Splitting&Rewinding |
| - BOPP Film - EVA (TOTAL E182L, DUPONT) |
- Symmetrical thickness - Strong surface tension |
- Corona treatment - Peel strength |
- Precise roll measure - Smooth surface |
| Roll Body | Overlayer Carton | Pallet Packaging | Container Loading |
| - Clear plastic bubble film - Label outside |
- Five layers corrugated box - Protective plastic cap |
- Corner protection - Strongly stretched |
- Dunnage bag used - No dropping |
Download Product Data (Click the following link)
BOPP Thermal Lamination Film Data Sheet.pdf
Download Certificates (Click the following link)
CERTIFICATE of FDA n CPSIA.pdf
