Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: SGS
Model Number: Laser Holographic Film
Payment & Shipping Terms
Minimum Order Quantity: 2000KGS
Price: USD3.2-7.9/KG
Packaging Details: Carton and Pallet
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 450Tons/month
Type: |
Silver Laser Holographic Film |
Thickness: |
28micron |
Width: |
500mm, Or Customized |
Length: |
1000m-4000m |
Core: |
3" (76mm) |
Corona Treatment: |
Both Sides Corona Treated, Over 42dynes |
Printable: |
Yes |
Application: |
Booklets/Photo/Paper Bag Lamination |
Machine: |
Thermal Lamination Machine |
Delivery Lead: |
20Days |
Type: |
Silver Laser Holographic Film |
Thickness: |
28micron |
Width: |
500mm, Or Customized |
Length: |
1000m-4000m |
Core: |
3" (76mm) |
Corona Treatment: |
Both Sides Corona Treated, Over 42dynes |
Printable: |
Yes |
Application: |
Booklets/Photo/Paper Bag Lamination |
Machine: |
Thermal Lamination Machine |
Delivery Lead: |
20Days |

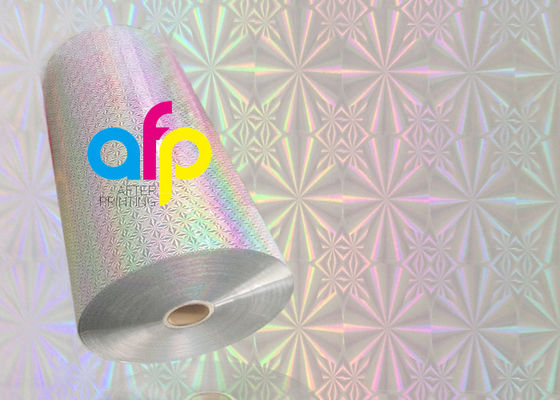

Metallic Silver Glossy 28micron Thermal Laser Holographic Film for Lamination
SPECIFICATION
| Holographic Thermal Laminating Film |
Base Film | BOPP | PET | ||
| 18 micron | 18 micron | 12 micron | 15 micron | ||
| EVA | 6 micron | 8 micron | 12 micron | 10 micron | |
| TOTAL | 24 micron | 26 micron | 24 micron | 25 micron | |
| Yield | 45192 sqm/MT | 41653 sqm/MT | 35613 sqm/MT | 32895 sqm/MT | |
| 0.0221 kgs/sqm | 0.024 kgs/sqm | 0.0281 kgs/sqm | 0.0304 kgs/sqm | ||
| thickness available from 20 micron to 38 micron, customized thickness composition available | |||||
| Width(mm) | 200mm to 1200mm | ||||
| Length(m) | 2000m to 4000m | ||||
| Tolerance | +/-1 um | ||||
| Paper Core | 76mm(3 inch),50.8mm(2 inch), 25.4mm(1 inch) | ||||
| Corena Treatment | single or double sides, over 40 dynes | ||||
| Compound Temperature | 85ºC-110ºC(185ºF-230ºF) | 90ºC-150ºC(194ºF-302ºF) | |||
| Compound Pressure | 10-18mpa | ||||
| Compound Speed | 10-60m/min |
||||
There are many metallic colors holographic film, such as Silver, Gold, Green, Blue, Red, Yellow, Pink and other customized metallic as per Panton card.
Metallic Silver Glossy 28micron Thermal is the cheapest among all metallic colors thermal holographic film, usually applied to paper bag lamination.
Laser Holographic Lamination Film makes the packaging outstanding and distinguished...
So far there are over 180 patterns, and customized pattern is avaliable.
Appearance: transparent, silver, metallic colors.
Colors: available upon Panton
What is Laser Holographic Film?
Laser holographic film is using hologram technogy to film,and with a diffusion for a time sufficient to modify the wavelength of light response by the hologram.
Laser Holographic Film offers even coating, clear images, bright color,good adhesion and effect, etc.
Widely used to plastics-plastics lamination or paper-plastics lamination, such as of cigarette packing, food,
medicine, labels, commodity, gifts, Christimas garlands and other sectors of the printing and packaging,
electronic shielding bags, explosion-proof film of car windows, building decoration and so on.
According to the basic material, it is classified as PET, BOPP, PVC and PA;
According to the function, it also could be classified as holographic packaging film, colorful packaging film,
matte colorful packaging film, sealable holographic packaging film,hologram hollowed-out film as well as holographic anti-fack label.
Our Holographic Thermal Laminating Film holds more than 180 patterns.
Patterns based on both transparent and metalized, the latter holds silver or colorful effect which means a specific pattern can be produced based on various different colors. the pattern from our producing line never fade and well applied to lamination and packaging.
it provides brightness and luster effect for enhancing elegance to various substrates.
Tips: both cold(without glue) holographic film and thermal (with EVA glue) holographic film available
Material: BOPP or PET Film + EVA
Thickness: 20micron to 26micron
Roll width: 200mm to 1480mm
Roll length: 2000m to 4000m
Where is Thermal Holographic Lamination Film used?
Holographic Thermal Laminating Film has a wide range of application, including:
Books, Posters, Presentation Folders, Labels, Shopping Bag, POP Signs, Document, Book Covers, ID Cards, License, Antigraffiti, Boardmaking, write on/wipe off Calendars, Photographs, Albums ect.
Outside coating for wrapping box or bag for food, cosmetic, gift, liquor etc.
Drawing paper, documents, advertisement, digital printing, show board, etc.
Holographic Thermal Lamination Film Data Sheet.pdf
