Product Details:
Payment & Shipping Terms:
|
| Material: | BOPP/PET + EVA | Type: | Gloss |
|---|---|---|---|
| Softness: | Soft | Thickness: | From 12micron To 350micron |
| Transparent: | Transparency Or Opaque | Roll Size: | 750mm*150m, 445mm*2000m, 650mm*3000m, Etc. |
| Corona Treatment: | Double Sides, Over 38 Dynes | Core Diameter: | 1inch (25.4mm), 2.3inch (58mm), 3inch (76mm), |
| Laminating Machine: | Laminator | Laminating Speed: | 10-60m/min |
| High Light: | gloss film lamination,laminated packaging films |
||

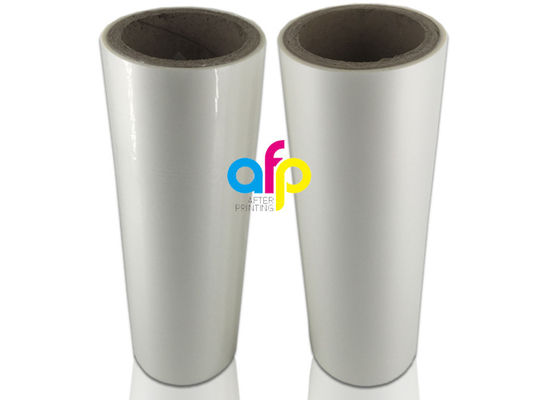

BOPP/PET + EVA Gloss Laminating Film 18mic
Here are their product technical parameter, suitable for both gloss and matt laminating film.
| Product Technical Parameter | ||||
| BOPP Gloss Laminating Film | ||||
| Material | Base Film | BOPP (Biaxially Oriented Polypropylene) Film | Thickness | from 15micron to 30micron |
| Adhesion | EVA ( Ethyl Vinyl Acetate ) | Roll Width | from 180mm to1880mm | |
| Corona Treatment | Single or Double | Roll Length | from 300m to 4000m | |
| Sur.Tension | over 38 dynes | Joint | ≤1 | |
| Shelf Life | 9 months | Core Size | 1inch (25.4mm), 3inch (76.2mm), | |
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||
| Application | Textbook Cover, Brochures, Leaflets, Sweet Boxes, Cosmetics, Shopping Bag, Diaries | |||
| Operation Guidance | ||||
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) | |||
| Compound Pressure | 10-18 mpa | |||
| Compound Speed | 10-60m/min | |||
Gloss laminating film is usually composed of two kinds by composition: thermal/hot/dry gloss lamianting film and cold/wet gloss laminating film. It can also be classified by the material of base laminating film: BOPP gloss laminating film and PET gloss laminating film.
High gloss laminting film will impart a excellent glossy finish to the substrate after laminate with the film. It will protect the substrate from water, moistures and enhance the touch experience.
18mic glossy lamianting film is very popular on the markets.
| Product Technical Parameter | ||||
| PET Gloss Laminating Film | ||||
| Material | Base Film | PET (Polyester) Film | Thickness | from 12micron to 350micron |
| Adhesion | EVA ( Ethyl Vinyl Acetate ) | Roll Width | from 180mm to1400mm | |
| Corona Treatment | Single or Double | Roll Length | from 50m to 3000m | |
| Sur.Tension | Over 42 dynes | Joint | ≤1 | |
| Shelf Life | 12 months | |||
| Core Size | 1inch (25.4mm), 2.3inch (58mm), 3inch (76.2mm) | |||
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||
| Application | Textbook Cover, Menu, Album, Brochures, Leaflets, Sweet Boxes, Cosmetics, Diaries | |||
| Operation Guidance | ||||
| Compound Temperature | 90℃ - 150℃ (194℉ - 302℉) | |||
| Compound Pressure | 10-18 mpa | |||
| Compound Speed | 10-50m/min | |||
What is Gloss Laminating Film ?
Gloss laminating film is produced by multi extrusion coating lines.
It is consisted of two layers. One is plastic film, of which mainly is BOPP or PET film, another layer is adhesive glue of EVA .
Gloss laminating film is also called dry, hot or heat laminating film.
Where is gloss laminating Film Used?
Generally, the printing house uses BOPP gloss laminating Film rolls for commercial and school printings.
it can also be used to graphic arts large format.
the transparent film lamination, bright/shine/glossy or matte/dull, is heated as protection on the paper cover.
Sometimes people call it as paper lamination film used by heating eva adhesive glue into paper substrates.
To be specific, the application of BOPP gloss Laminating Film Roll can be used to:
Textbook covers | Brochures | Leaflets | Sweet boxes and diaries | Shopping bags | Cosmetics boxes
Packaging & Shipping
* One Roll gloss laminating film, One carton
* Tens of rolls of gloss laminating film in a pallet
* 10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
* Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
* Seaport: Xiamen, Shanghai, Ningbo
FAQ
About Samples
* Samples for testing are available and free
* The freight for sample delivery is at receiver's side
* But to be refunded by deducting from the right coming order automatically
* For saving the cost, we recommend the way of prepaid instead of collect
About Capacity
* 5 coating lines
* 20 days delivery of a 40 feet container
* 850 tons per month
About Responsibility and After-sale Service
* 12 months warranty
* In case of any quality problem happens, you must be equivalently compensated
