Product Details
Place of Origin: Fujian, China
Brand Name: AFP
Certification: FDA, EN 71-3, CPSIA, REACH
Model Number: Matte
Payment & Shipping Terms
Minimum Order Quantity: 2 Tons (Mixed roll width accepted)
Price: USD2355.00/Ton ~ USD2588.00/Ton
Packaging Details: 1-One roll one carton with plastic caps protection; 2-Tens of rolls a pallet; 3-Ten pallets a 20FCL
Delivery Time: 15 - 25 working days
Payment Terms: T/T, L/C,
Supply Ability: 1000 Tons per month
Material: |
BOPP + EVA |
Type: |
Matt Finis |
Softness: |
Soft |
Thickness: |
18micron, 20micron, 23micron, 25micron, 27micron |
Transparent: |
Transparency |
Roll Size: |
350mm*3000m, 445mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Technology: |
Multiple Extrusion |
Usage: |
Printed Paperboard Or Paper Laminate |
Material: |
BOPP + EVA |
Type: |
Matt Finis |
Softness: |
Soft |
Thickness: |
18micron, 20micron, 23micron, 25micron, 27micron |
Transparent: |
Transparency |
Roll Size: |
350mm*3000m, 445mm*3000m, Etc. |
Corona Treatment: |
Double Sides, Over 42 Dynes |
Paper Core: |
1 Inch (25.4mm), 3"(76mm) |
Technology: |
Multiple Extrusion |
Usage: |
Printed Paperboard Or Paper Laminate |
42 Dynes Double Corona Treatment Thermal Roll Matte Laminating Film for Hot Stamping and Spot UV
| Product Data Sheet | ||||||||
| Matte White BOPP Thermal Laminating Film | ||||||||
| Specifications | Model No. | AFP-Y18 | AFP-Y20 | AFP-Y22 | AFP-Y21 | AFP-Y23 | AFP-Y25 | AFP-Y27 |
| Type | Matte | Matte | Matte | Matte | Matte | Matte | Matte | |
| Thickness | BOPP | 12 micron | 12 micron | 12 micron | 15 micron | 15 micron | 15 micron | 15 micron |
| EVA | 6 micron | 8 micron | 10 micron | 6 micron | 8 micron | 10 micron | 12 micron | |
| TOTAL | 18 micron | 20 micron | 22 micron | 21 micron | 23 micron | 25 micron | 27 micron | |
| Yield | m²/kg | 63.613 | 56.948 | 51.546 | 54.735 | 49.727 | 45.558 | 40.112 |
| kg/m² | 0.0157 | 0.0176 | 0.0194 | 0.0183 | 0.0201 | 0.0220 | 0.0249 | |
| Customized thickness- combination available (18 micron to 30 micron, glossy and matte) | ||||||||
| Price by weight or square meter available | ||||||||
| Thickness Tolerance | ±1μm (micron) | |||||||
| Roll Width | from 180mm to1880mm | |||||||
| Roll Length | from 300m to 4000m | |||||||
| Joint | ≤1 | |||||||
| Core Size | 1inch (25.4mm), 3inch (76.2mm), | |||||||
| Corona Treatment | Single or Double, ≥ 38dyne | |||||||
| Shelf Life | 9 months | |||||||
| MOQ | 2 tons (mixed width available 500mm,600mm,700mm etc.) | |||||||
| Operation Guidance | ||||||||
| Compound Temperature | 85℃ - 105℃ (185℉ - 221℉) | |||||||
| Compound Pressure | 10-18 mpa | |||||||
| Compound Speed | 10-60m/min | |||||||
Thermal lamination film is used to laminate printings pursuing effect of more luster, elegant, visually comfortable sense, and comfortable touch sense.
It prevents lamination from being pressed, bubbled and desquamated.
It also protects laminated printings from harmful substances and is moisture-proof, ensuring a long life storage.
The matte finishing is usually double corona treated with the value up to 42 dynes, excellent performance to UV varnishing and hot stamping.
It is used to enhance the elegance of printed paper by heating lamination, especially when a brand is looking for a more impressive effect on the end-user consumptions.

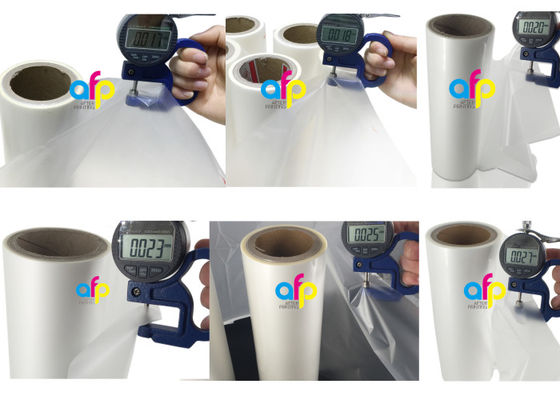

Matte finish lamination film sees thickness from 18micron to 30micron, with the combination like 12BOPP+6EVA (18micron) or 15BOPP+10EVA (25micron).
|
Applications:
|
|
Raw Material Inspection Adhesion Coating Quality Testing Splitting&Rewinding
* BOPP Film * Corona treatment * Corona treatment * Precise roll measure
* EVA (TOTAL E182L, DUPONT) * Strong surface tension * Peel strength * Smooth surface
Roll Body Overlayer Carton Packaging Pallet Packaging Container Loading
* Clear plastic bubble film * Five layers corrugated box * Corner protection * Dunnage bag used
* Label outside * Protective plastic cap * Strongly stretched * No dropping
Download Product Data (Click the following link)
BOPP Thermal Lamination Film Data Sheet.pdf
Download Certificates (Click the following link)
CERTIFICATE of FDA n CPSIA.pdf
