Payment & Shipping Terms:
|Width:||180mm To 1880mm||Length:||100m To 6000m|
|Packing:||Carton||Shelf Life:||24 Months|
|Composition:||PET Film + EVA Adhesion||Application:||Packaging|
|Paper Core:||1''(25.4mm); 3''(76mm)|
gloss film lamination,
laminated packaging films,
Polyester PET Thermal Gloss Laminating Film
PET(short for polyester) thermal glossy laminating film roll is a plastic packaging material widely used in the field of post-press.
Its thickness is available from 11micron(in composition of 6micron PET film and 5micron EVA glue) to 350micron(in composition of 250micron PET film and 100micron EVA glue), and popular thickness like 25micron, 75micron, 125micron, 175micron, 250micron, etc.
|10 micron||12 micron||50 micron||75 micron||150 micron|
|EVA||5 micron||5 micron||5 micron||13 micron||25 micron||50 micron||100 micron|
|75 micron||125 micron||
Customized thickness- combination available (11 micron to 350 micron, glossy and matte)
Price by MT or square meter available
PET Thermal Laminating Film is mainly made of PET + EVA.

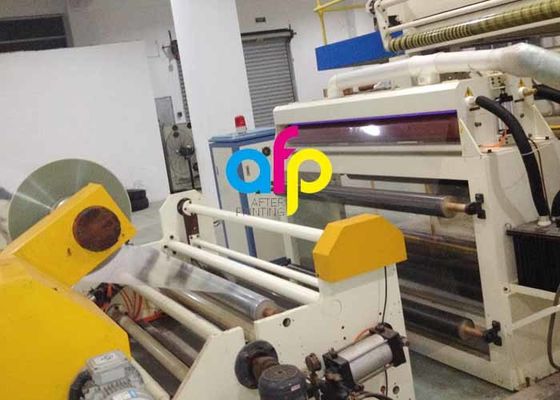

we use extrusion coating process to combine this two layers.
in the final film one side has properties of PET film and the other side becomes heat sensitive surface used for dry lamination.
this product has two classifications: glossy/shine/transparent and matte/opaque, both of which sees thickness from 11micron to 350micron.
its width could be from 180mm to 1880mm and length from 100m (1 inch core, 25mm) to 4000m (3 inch core, 76mm).
the application of PET Glossy Laminating Film can be used to the followings:
We need a laminating machine (usually called hot laminator) to use PET thermal laminating film roll by melting the EVA into substrates such as paper.
during the process, the film is passed on a heated roller and under reasonable pressure it sticks to the paper.
this process is easy to use and can be done in home for small applications.
sometimes, people also call it heat lamination or dry lamination or hot lamination.
Operation Guidance on Laminating Process
1. Adjust roller pressure and temperature according to different types of paper and ink.
2. When using the film for the first time or changing the usual size, a small trial volume before starting massive lamination is proposed.
3. Normal process temperature is 90℃-105℃ (203℉ - 221℉), roller pressure and temperature vary from different types of paper, ink and machines.
4. Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture or powder.
5. Make sure to put the material in place with low temperature and dry.
6. The following situation will affect the final quality of the film during lamination.
a. Using metal ink
b. Ink containing too much wax, dried oil, adhesive, silicon additive and so on.
c. Much too thick ink
d. Ink completely not dried yet.
e. Much too humid paper sheet.
f. Too much powder on the surface
About Packing and Shipping
*One roll PET thermal lamination film, one carton
*Tens of rolls of PET thermal lamination film in a pallet
*10 to 12 pallets loaded into 1*20FCL (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40 feet container (appro. 25MTs)
*Seaport: Xiamen, Shanghai, Ningbo
Airbags Used for Protecting the Pallets from Collision When Container is Loading…
* Samples for testing are available and free
* Usually sized 300/400mm*100m/200m of each glossy or matt roll
* For favorite measures, please feel free to advise
* The freight for sample delivery is at receiver's side
* But to be refunded by deducting from the right coming order automatically
* For saving the cost, we recommend the way of prepaid instead of collect
* 2 coating lines
* 20 days delivery of a 40 feet container
* 350MTs per month
* Thickness from 11micron (6PET+5EVA) to 350micron (250PET+100EVA)
* Roll width from 180mm to 1880mm
* Roll length from 100m to 6000m
* Reel inner diameter at 25.4mm(1 inch) or 76mm(3 inch)
* Reel outer diameter: 240mm to 380mm (upon reel length and width)
